AVS2 Carburetor #1906 650 CFM With Electric Choke, Satin Finish (Non-EGR)

AVS2 Carburetor
AVS2 Carburetor
AVS2 Carburetor
AVS2 Carburetor
AVS2 Carburetor
AVS2 Carburetor

AVS2 Carburetor #1906 650 CFM With Electric Choke, Satin Finish (Non-EGR)

Regular price $433.99
/
  • Secure payments
  • Low stock - 3 items left
  • Inventory on the way
Shipping calculated at checkout.

DETAILS

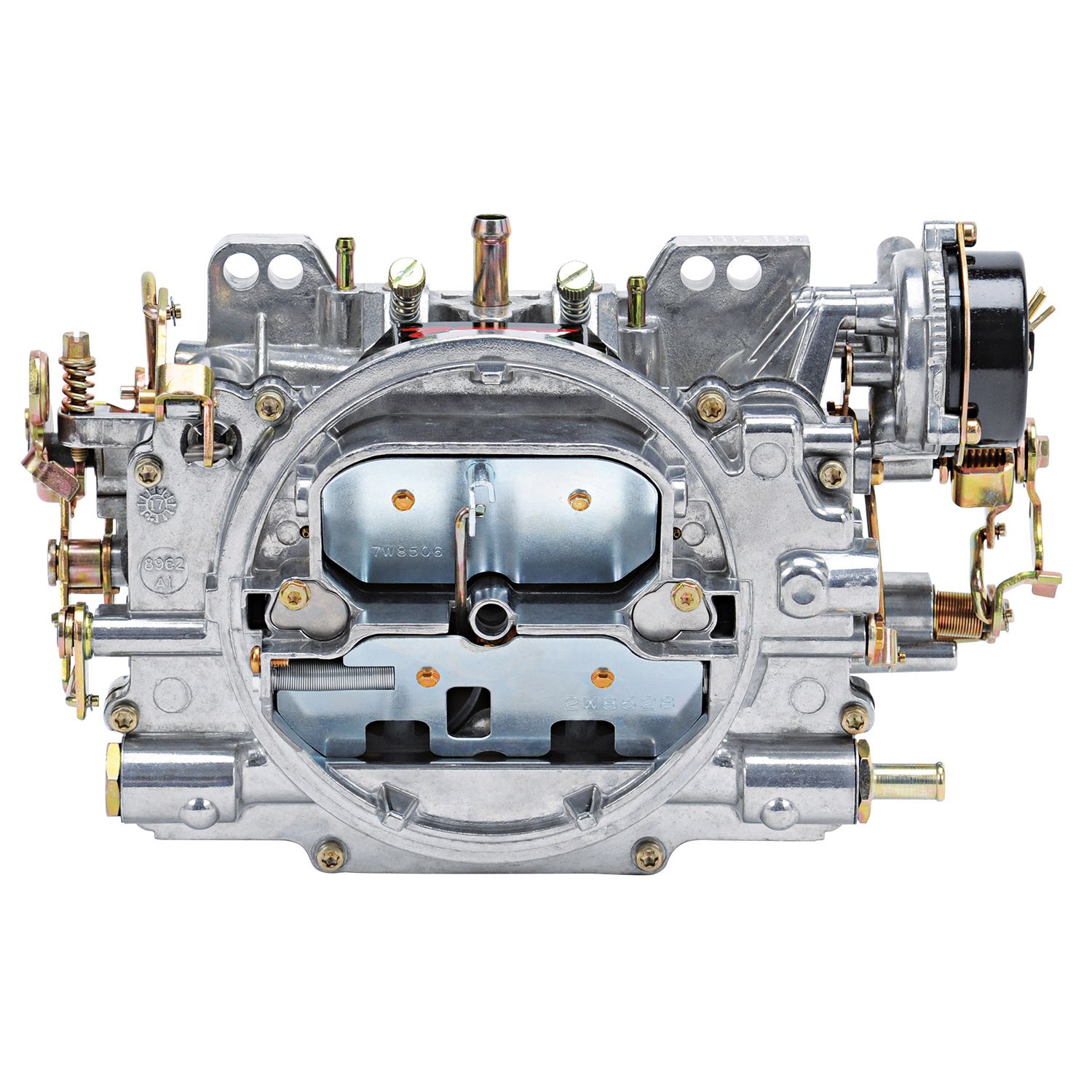

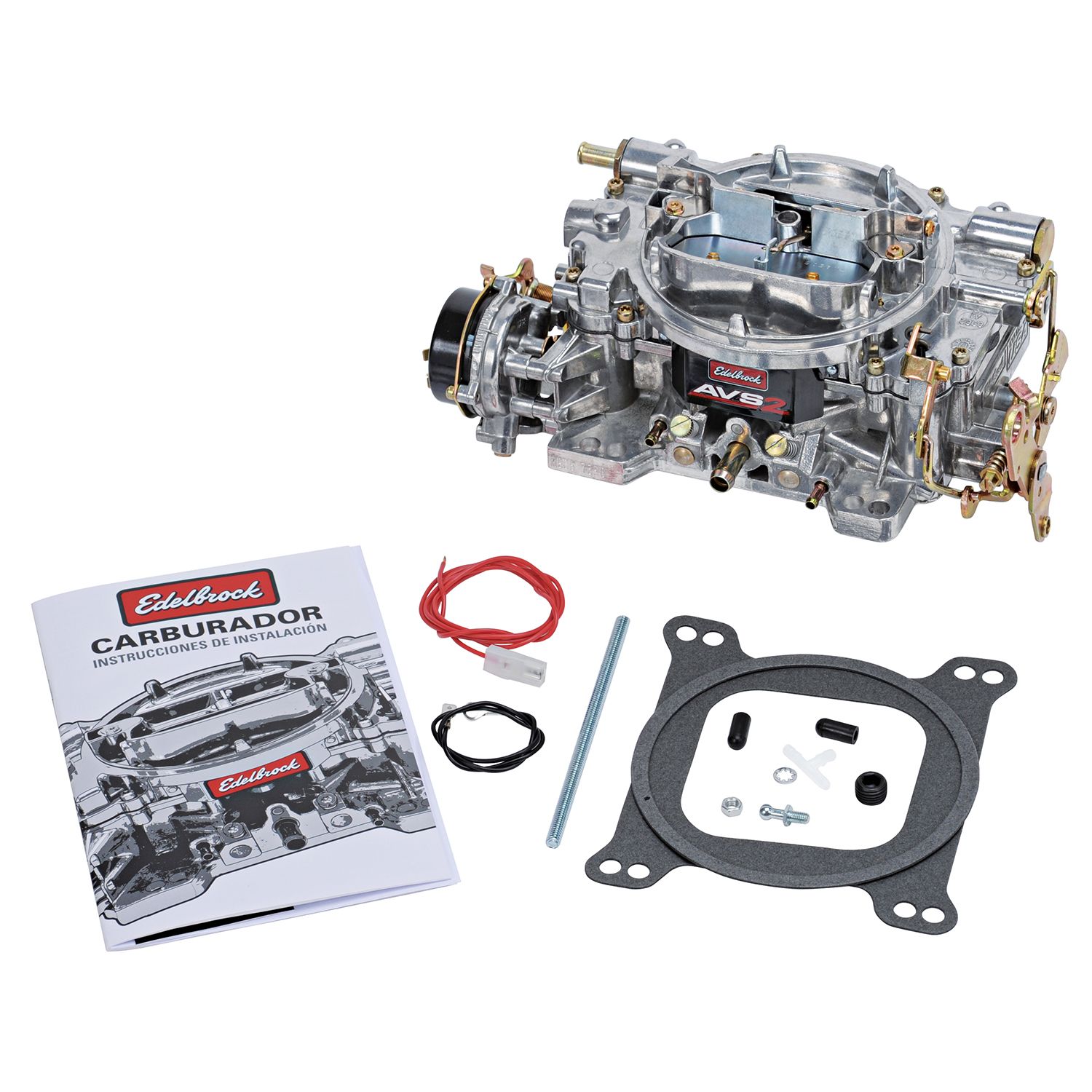

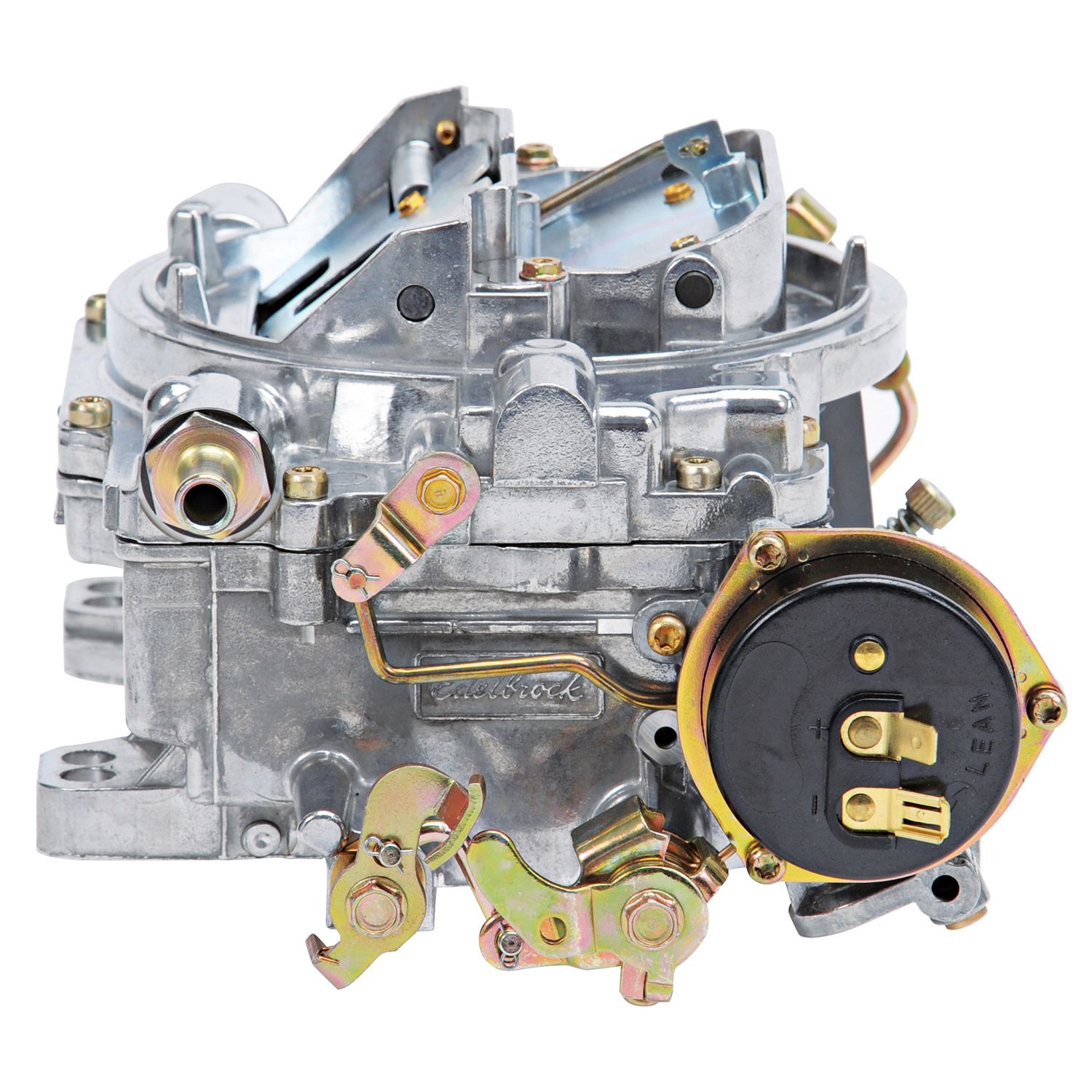

The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.

SPECS

Manufacturer Edelbrock
Application Application Specific
UPC 00085347019069
Condition New
Series AVS2
Metering Rod Size .070 x .037 in
Gasket Or Seal Included Yes
Barrel Quantity 4 Barrel
Flange Type Square
Secondary Jet Diameter 0.098
Main Venturi Diameter 1.19
Body Height 3.25
Bore Diameter Primary Bore 1.44; Secondary Bore 1.75
Spring Force 5" Hg (Orange)
Availability Note Available to Order
Warranty 12 Months
Emissions Code

Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.; The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor; You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds
Body Color Satin Finish
Choke Type Electric
Finish Satin
Marine Approved No
Material Aluminum
CFM Rating 650 cfm
Primary Jet Diameter 0.101
